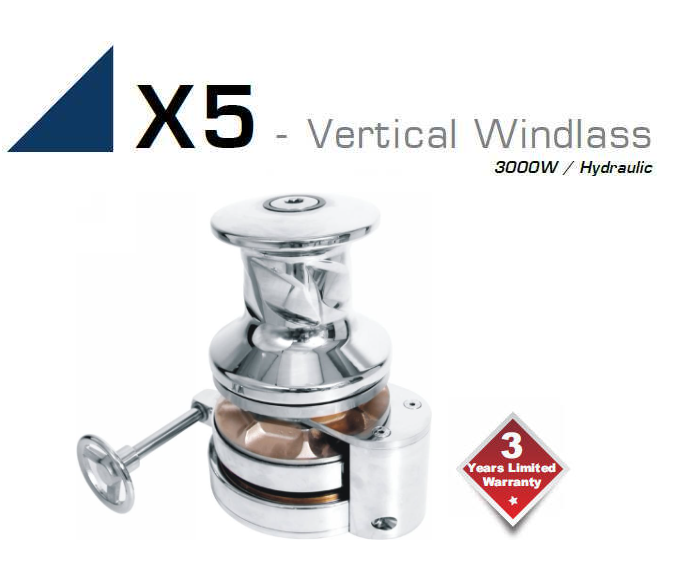

Lofrans X5 Vertical Windlass

Lofrans X5

Main Features

Luxury stainless steel base and drum.

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual override.

Manual chain release.

Chain counter pre-setting as standard.

Heavy duty rated IP44 electric motor.

Anodised marine aluminium gearbox.

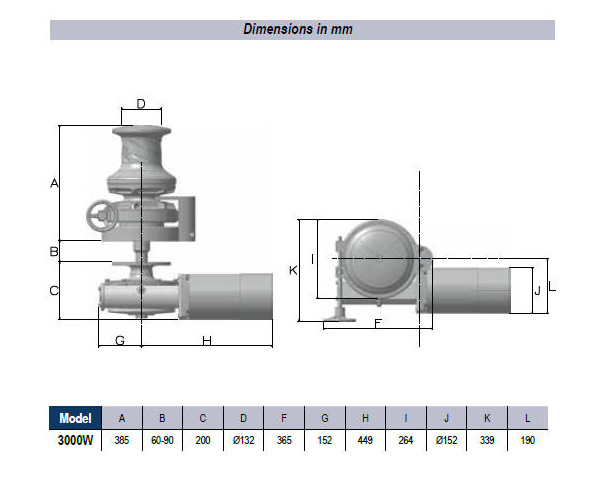

Lofrans X5 specifications

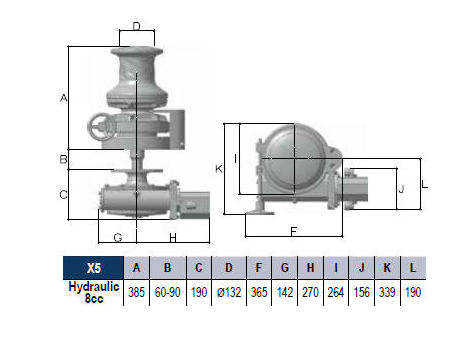

Hydraulic dimensions

Lofrans X5 Hydraulic

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction 316L
Stainless Steel
316L
Stainless Steel
Motor Size 3000W Hydraulic
Volts 24
Maximum Instant Lift (kg) 2700 2700
Lifiting Working Load (kg) 550 650
Amps Work load (A) 210
Line speed (m/min) 17 21
Max line speed (m/min) 33 21
Hydraulic Pressure (bar) 200
Hydraulic Volume (lt/min) 32
Net Weight (kg) 100 85
Relay box yes

With Drum

Construction 316L
Stainless Steel
316L
Stainless Steel
Motor 3000W Hydraulic
Chain Size
12,693.41 €
Sale Price
11,424.07 €
9,555.87 €
Sale Price
8,600.28 €
12mm ISO 4565
13mm DIN 766
091032242 091032243
14mm 091032252 091032253
1/2" DIN 091032052 0932053
1/2" HT 091032072 0932073

Low Profile

Construction 316L
Stainless Steel
Motor 3000W
Chain Size
11,496.39 €
Sale Price
10,346.75 €
12mm ISO 4565
13mm DIN 766
9103105206

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
