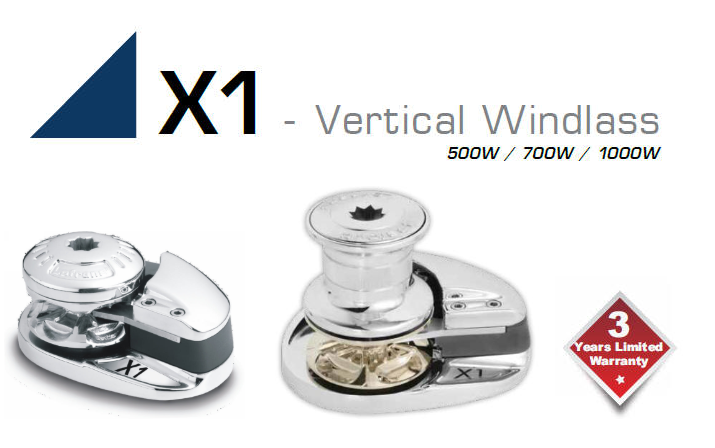

Lofrans X1 Vertical Windlass

Luxury chrome bronze or aluminium base and drum.

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual chain release.

Rope chain management by the spring load arm.

Chain counter pre-setting as standard.

Heavy duty rated IP67 electric motor.

Anodised marine aluminium gearbox.

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	Aluminium	Chromed Bronze	Chromed Bronze	Chromed Bronze
Motor Size	500W	500W	800W	1000W
Power Supply (V)	12	12	12	12
Maximum Linea Load (kg)	630	630	700	900
Lift Working Load (kg)	70	70	80	120
Amps Work Load (A)	75	75	80	120
Line Speed (m/min)	23	23	25	18
Max Line speed (m/min)	26	26	28	30
Net Weight Low Profile (kg)	10	11	13	16
Net weight with Drum (kg)	11	12	14	27
Control Box	Included	Included	Included	Included

Construction	Aluminium	Chromed Bronze	Chromed Bronze	Chromed Bronze
Motor Size	500W	500W	800W	1000W
Chain Size	966.37 € Sale Price 869.73 €	1,091.87 € Sale Price 982.68 €	1,192.25 € Sale Price 1,073.03 €	1,342.85 € Sale Price 1,208.57 €
6mm	01112201	01122201	01322201
8mm		01122211	01322211	01422211
3/16 BBB	01112001	01122001	01322001	01422001
1/4 HT	01112011	01122011	01322011	01422011
5/16 HT	01112021	01122021	01322021	01422021

Construction	Aluminium	Chromed Bronze	Chromed Bronze	Chromed Bronze
Motor Size	500W	500W	800W	1000W
Chain Size	878.57 € Sale Price 790.71 €	1,029.12 € Sale Price 926.21 €	1,116.98 € Sale Price 1,005.28 €	1,280.13 € Sale Price 1,152.12 €
6mm	01111201	01121201	01321201
8mm		01121211	01321211	01421211
3/16 BBB	01111001	01121001	01321001	01421001
1/4 HT	01111011	01121011	01321011	01421011
5/16 HT	01111021	01121021	01321021	01421021

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
