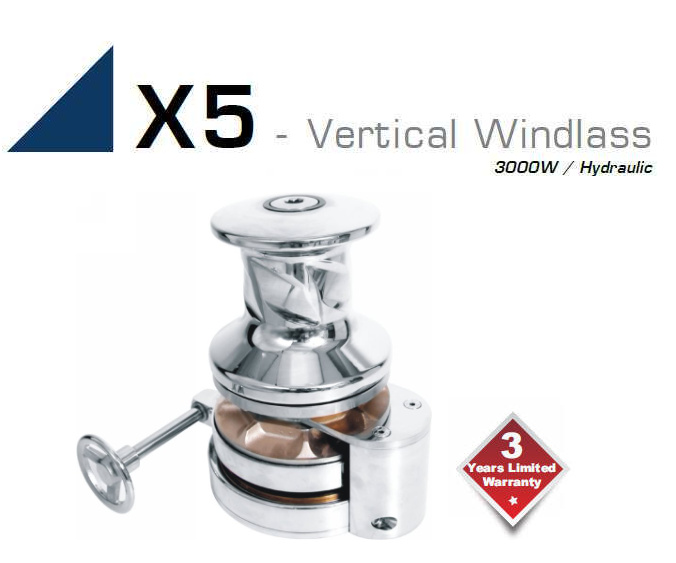

Lofrans X5 Vertical Windlass

Lofrans X5

Main Features

Luxury stainless steel base and drum.

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual override.

Manual chain release.

Chain counter pre-setting as standard.

Heavy duty rated IP44 electric motor.

Anodised marine aluminium gearbox.

Lofrans X5 specifications

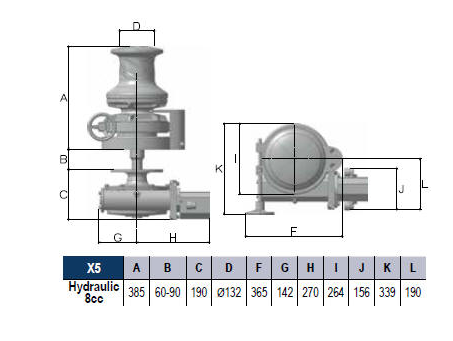

Hydraulic dimensions

Lofrans X5 Hydraulic

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	316L Stainless Steel	316L Stainless Steel
Motor Size	3000W	Hydraulic
Volts	24
Maximum Instant Lift (kg)	2700	2700
Lifiting Working Load (kg)	550	650
Amps Work load (A)	210
Line speed (m/min)	17	21
Max line speed (m/min)	33	21
Hydraulic Pressure (bar)		200
Hydraulic Volume (lt/min)		32
Net Weight (kg)	100	85
Relay box	yes

With Drum

Construction		316L Stainless Steel	316L Stainless Steel
Motor		3000W	Hydraulic
Chain Size	Rotation	12,693.41 € Sale Price 11,424.07 €	9,555.87 € Sale Price 8,600.28 €
12mm ISO 4565 13mm DIN 766	CW	600089	602389
14mm	CW	600091	602390
14mm	CCW	636463	602392

Low Profile

Construction	316L Stainless Steel
Motor	3000W
Chain Size	11,496.39 € Sale Price 10,346.75 €
12mm ISO 4565 13mm DIN 766 CW	636296

*Other options available: 12/13mm - 14mm - 1/2
