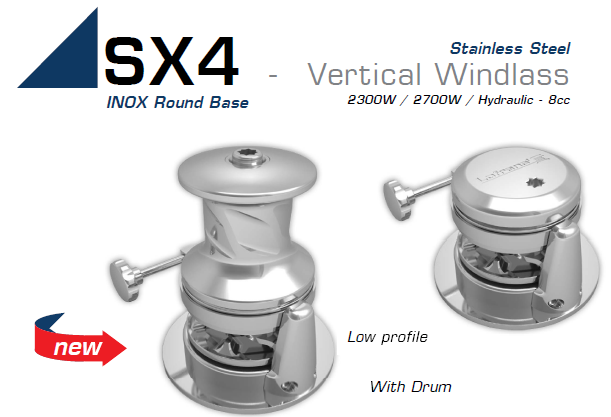

Compact round base design
Marine AISI 316L Stainless Steel construction
With drum or Low profile
Indepent Gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 rated heavy duty electric motor
.png)
.png)
Complete Windlass.
Chain gypsy.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
| Construction | Stainless Steel | ||
|---|---|---|---|
| Motor Size | 2300W | 2700W | Hydraulic - 8cc |
| Volts | 24 | 24 | |
| Maximum Instant Lift (kg) | 2100 | 2500 | 2500 |
| Lifiting Working Load (kg) | 500 | 530 | 650 |
| Amps under load (A) | 160 | 170 | |
| Line speed (m/min) | 13 | 13 | 16 |
| Max line speed (m/min) | 25 | 28 | 16 |
| Hydraulic Pressure (bar) | 200 | ||
| Hydraulic Volume (lt/min) | 32 | ||
| Net Weight Low Profile (kg) | 72 | 75 | 55 |
| NetWeight With Drum (kg) | 82 | 85 | 60 |
| Relay box | yes | yes | |
CW: the windlass pulls clockwise.
| Motor | 24v 2300w | 24v 2700W | Hydraulic - 8cc |
| Chain Size |
6,166.77 €
Sale Price 5,550.10 € |
6,713.80 €
Sale Price 6,042.42 € |
5,346.16 €
Sale Price 4,811.55 € |
| 12mm ISO/ 13mm DIN | 636290 |
636291 |
636295 |
| 14mm | 636655 |
CCW: the windlass pulls counter clockwise.
| Motor | 24v 2300w | 24v 2700W | Hydraulic - 8cc |
| Chain Size |
6,216.50 €
Sale Price 5,594.85 € |
6,713.91 €
Sale Price 6,042.52 € |
5,967.88 €
Sale Price 5,371.09 € |
| 12mm ISO/ 13mm DIN | 636292 |
636293 |
636294 |
