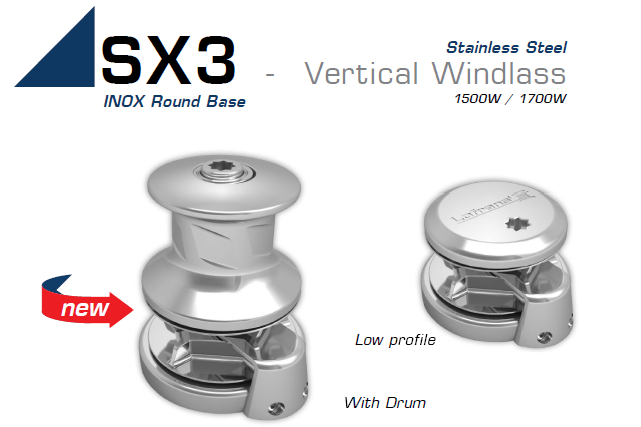

Compact round base design
Marine AISI 316L Stainless Steel construction
With drum or Low profile
Indepent Gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 rated heavy duty electric motor
Anodised marine aluminium gearbox
.png)
Complete Windlass.
Chain gypsy.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
| Construction | Stainless Steel | |||
| Motor Size | 1500W | 1700w | ||
| Volts | 12 | 24 | 12 | 24 |
| Max instant pull (kg) | 1200 | 1200 | 1600 | 1695 |
| Working pull (kg) | 165 | 165 | 200 | 215 |
| Amps under load (A) | 150 | 65 | 180 | 90 |
| Line speed (m/min) | 17 | 17 | 14 | 15 |
| Max line speed (m/min) | 40 | 40 | 32 | 32 |
| Weight Low Profile (kg) | 32 | 32 | 35 | 35 |
| Weight With Drum (kg) | 35 | 35 | 38 | 38 |
| Construction | Stainless steel | |||
| Motor | 12v 1500W | 24v 1500W | 12v 1700W | 24v 1700W |
| Chain Size |
2,631.17 €
Sale Price 2,368.06 € |
2,932.99 €
Sale Price 2,639.69 € |
2,723.42 €
Sale Price 2,451.08 € |
2,723.42 €
Sale Price 2,451.08 € |
| 8mm ISO | 636598 |
|||
| 10mm DIN | 636652 |
636591 |
636288 |
|
| 10mm ISO | 636658 |
|||
| 12mm ISO | 636287 |
|||
| Construction | Stainless steel | ||
| Motor | 12v 1500W | 12v 1700W | 24v 1700W |
| Chain Size |
1,870.89 €
Sale Price 1,683.80 € |
2,486.61 €
Sale Price 2,237.95 € |
2,486.61 €
Sale Price 2,237.95 € |
| 10mm ISO | 636289 |
636451 |
|
| 12mm ISO | 636286 |
||
