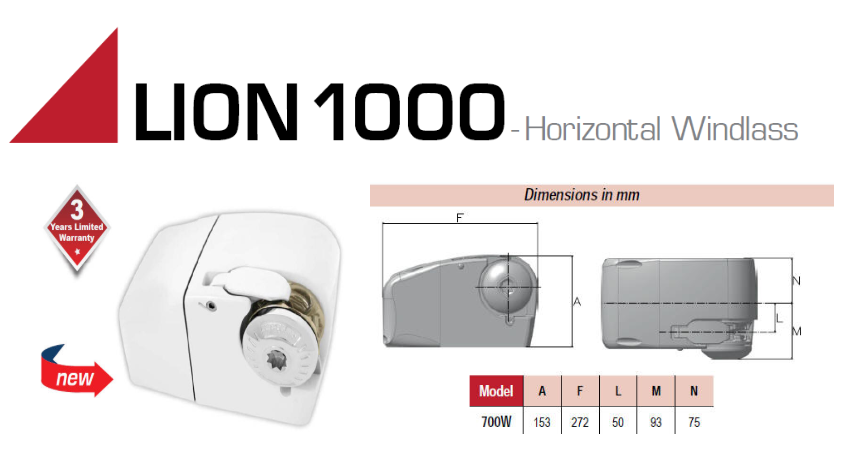

Lofrans Lion 1000 Windlass

Automatic free fall available (optional).

White polyester coating.

Manual chain release.

Rope chain management by the spring load arm.

Chain counter magnet pre-setting as standard.

Heavy duty rated IP66 electric motor.

Control Box included in package.

Construction	Anodised Aluminium
Motor Size	700W
Power Supply	12
Maximum Pull (kg)	575
Working Load (kg)	105
Amps at Working Load	60
Line Speed at Working Load (m/min)	23
Max Line Speed (m/min)	26
Net Weight Low Profile (kg)	11

Chain and Rope
Size

Free Fall

Part

	6mm
	10-12mm 3 Strand

No
Free Fall

1,172.25 €

636214

	8mm
	12mm 3 Strand

no
Free Fall

1,172.25 €

636215

	6mm
	10-12mm 3 Strand

With
Free Fall

1,219.61 €

636216

	8mm
	12mm 3 Strand

With
Free Fall

1,219.61 €

636217
