| Chain size | Material | Price | Shipping Quote |
| 6mm ISO 4565 DIN 766 G40 |
Galvanized |
380.42 €
|
Shipping Quote |
| 6mm ISO 4565 DIN 766 |
INOX 316 |
1,163.66 €
|
Shipping Quote |
| Chain size | Material | Price | Shipping Quote |
| 8mm ISO 4565 DIN 766 G40 |
Galvanized |
586.61 €
|
Shipping Quote |
| 8mm ISO 4565 DIN 766 |
INOX 316 |
2,007.63 €
|
Shipping Quote |
| Chain size | Length (mtrs) |
Material | Shipping Quote |
| 10mm ISO 4565 G40 | Galvanized |
892.98 €
|
Shipping Quote |
| 10mm ISO 4565 G40 | INOX 316 |
3,216.91 €
|
Shipping Quote |
| 10mm DIN 766 G40 | Galvanized |
892.98 €
|
Shipping Quote |
| Chain size | Material | Price | Shipping Quote |
| 12mm ISO 4565 G40 | Galvanized |
1,239.52 €
|
Shipping Quote |
| 12mm ISO 4565 G40 | INOX 316 |
4,897.23 €
|
Shipping Quote |
| Chain size | Material | Price | Shipping Quote |
| 2mm ISO 4565/DIN 766 |
INOX 316 |
157.30 €
|
Shipping Quote |
| 3mm ISO 4565/DIN 766 |
INOX 316 |
268.62 €
|
Shipping Quote |
| 4mm ISO 4565/DIN 766 |
INOX 316 |
499.73 €
|
Shipping Quote |
| 5mm ISO 4565/DIN 766 |
INOX 316 |
789.04 €
|
Shipping Quote |
.png)

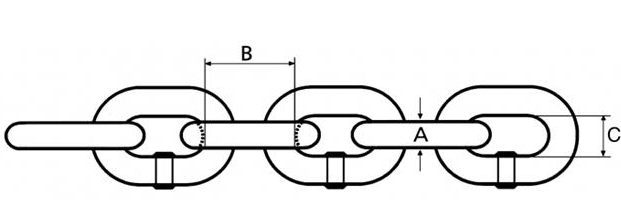

| Size | Spec | A | B | C |
| 6mm | DIN766 ISO 4565 |
6mm | 18.5mm | 8mm |
| 8mm | DIN766 ISO 4565 |
8mm | 24mm | 12mm |
| 10mm | DIN766 | 10mm | 28mm | 14mm |
| 10mm | ISO 4565 | 10mm | 30mm | 14mm |
| 12mm | DIN766 ISO 4565 |
12mm | 36mm | 18mm |
| 14mm | ISO 4565 | 14mm | 42mm | 19mm |
| 16mm | DIN766 | 16mm | 45mm | 19.2mm |
| 18mm | DIN766 | 18mm | 50mm | 21.6mm |
| Size | Spec | A | B | C |
| 1/4" | HT | 1/4" | 0.84" | 0.44" |
| 1/4" | BBB | 1/4" | 0.87" | 0.43" |
| 1/4" | PC | 1/4" | 1.00" | 0.50" |
| 5/16" | HT | 5/16" | 1.03" | 0.51" |
| 5/16" | BBB | 5/16" | 1.00" | 0.50" |
| 5/16" | PC | 5/16" | 1.12" | 0.50" |
| 3/8" | HT | 3/8" | 1.22" | 0.59" |
| 3/8" | BBB | 3/8" | 1.09" | 0.62" |
| 3/8" | PC | 3/8" | 1.23" | 0.62" |
| 7/16" | HT | 7/16" | 1.40" | 0.65" |
| 1/2" | HT | 1/2" | 1.59" | 0.76" |
| 1/2" | BBB | 1/2" | 1.34" | 0.72" |
| 1/2" | PC | 1/2" | 1.50" | 0.81" |
.png)

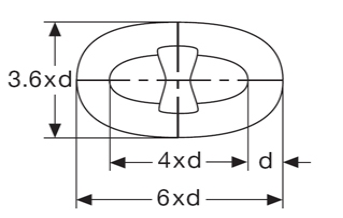

| Diameter | Inside Length |
Outside Length |
Outside Width |
| 4D | 6D | 3.6D | |
| 14mm | 56mm | 84mm | 50.4mm |
| 16mm | 64mm | 96mm | 57.6mm |
| 17.5mm | 70mm | 105mm | 63mm |
| 19mm | 76mm | 114mm | 68.4mm |
| 20mm | 80mm | 120mm | 72mm |
