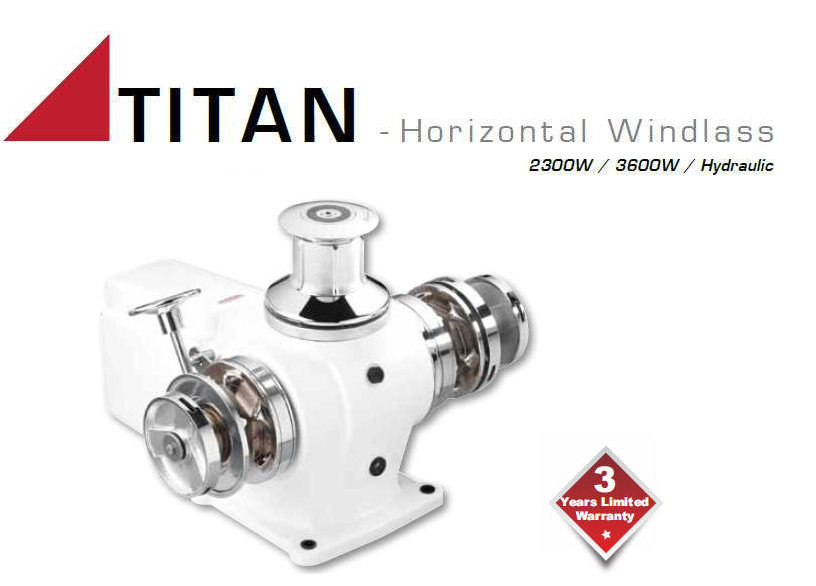

Lofrans Titan Windlass

Main Features

Marine aluminium anodised body.

Available in white polyester coating.

Manual override.

Manual chain release.

Independent Gypsy and drum operation

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	Aluminium	Aluminium	Aluminium
Motor Size	2300W	3600W	Hydraulic 9cc
Volts	24	230/400
Amps work load	10	11	11
Max instant lift (kg)	2800	2800	3400
Working load (kg)	550	650	700
Line speed (m/min)	10	11	11
Max Line speed (m/min)	18	11	11
Weight (kg)	115	115	95
Hydraulic Pressure (bar)			200
Hydraulic Flow (lt/min)			32

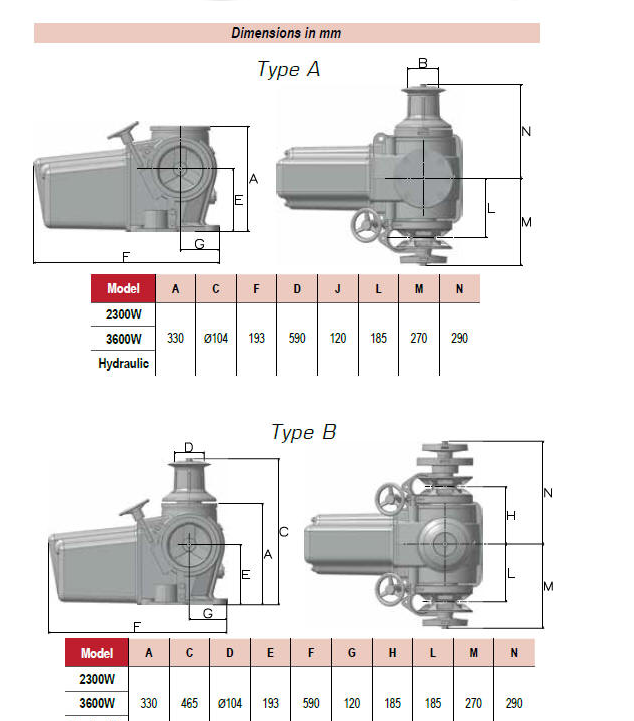

Type A	Gypsy Stb - Drum Port
Type B	Gypsy Stb - Gypsy Port - Drum Top
Type C	Gypsy Stb - Drum Port - Drum Top
Type D	Gypsy Stb - Drum Top
Type E	Gypsy Port - Drum Top
Type F	Drum Stb - Gypsy Port

Construction	Aluminium	Aluminium	Aluminium
Motor	24v 2300W	230-400v 3600W	Hydraulic 9cc
Aluminium Type A
Prices Chain and Rope Size	7,459.18 € Sale Price 6,713.26 €	8,791.19 € Sale Price 7,912.07 €	7,192.69 € Sale Price 6,473.42 €
12mm ISO/13mm DIN	404724	600845	602423
14mm DIN	600072	600847	602424
Aluminium Type B
Prices Chain and Rope Size	9,324.07 € Sale Price 8,391.66 €	11,791.72 € Sale Price 10,612.54 €	9,324.07 € Sale Price 8,391.66 €
12mm ISO/13mm DIN	428938	600880	602468
14mm DIN	426415	600882	602469
Aluminium Type C
Prices Chain and Rope Size	8,781.15 € Sale Price 7,903.04 €		8,530.09 € Sale Price 7,677.08 €
12mm ISO/13mm DIN	600895		602444
White Aluminium Type A
Prices Chain and Rope Size	7,526.67 € Sale Price 6,774.00 €	8,791.19 € Sale Price 7,912.07 €
12mm ISO/13mm DIN	600839	600846
14mm DIN	602415
White Aluminium Type B
Prices Chain and Rope Size	10,286.21 € Sale Price 9,257.59 €	11,791.72 € Sale Price 10,612.54 €
12mm ISO/13mm DIN	600865	600881
14mm DIN	600866
White Aluminium Type C
Prices Chain and Rope Size	11,201.15 € Sale Price 10,081.04 €		8,530.09 € Sale Price 7,677.08 €
12mm ISO/13mm DIN	600896

*Other options available: 8mmISO - 10mmISO/DIN - 12/13mm - 14mm - 1/2"BBB/G40 - 3/8"G40
