Lofrans Tigres Windlass

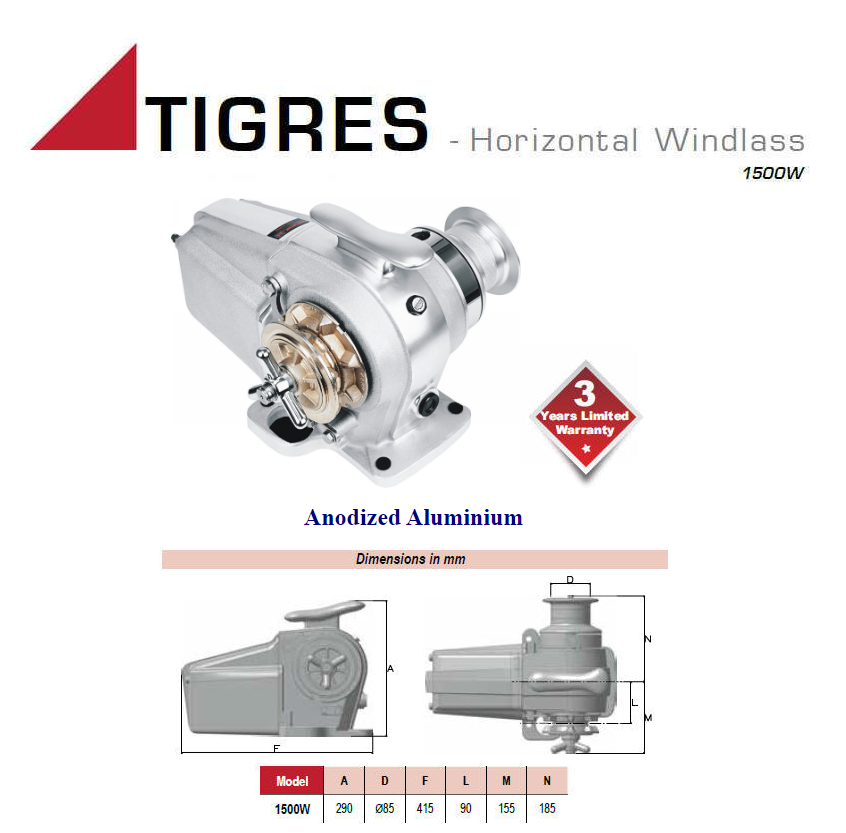

Lofrans Tigres

Main Features

Marine aluminium anodised body.

Rope chain management by the spring load arm.

Manual override.

Manual chain release.

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Aluminium Aluminium
Motor Size 1500W 1500W
Volts 12 24
Amps work load 160 90
Max instant lift (kg) 1350 1400
Working load (kg) 195 195
Line speed (m/min) 14 16
Max line speed (m/min) 33 33
Weight (kg) 28 28

Construction Aluminium Aluminium
Motor 1500W
12v
1500W
24v
Price
Chain and Rope Size
2,029.48 €
Sale Price
1,826.53 €
2,029.48 €
Sale Price
1,826.53 €
6mm ISO 4565 DIN 766 12513201 12513202
8mm ISO 4565 DIN 766 12513211 12513212
10mm ISO 4565 12513221 12513222
10mm DIN 766 12513231 12513232
3/16" 12513001 12513002
1/4" HT 12513011 12513012
5/16" HT 12513021 12513022
3/8" DIN 12513031 12513032
3/8" HT 12513041 12513042
3/8" BBB 12513081 12513082
3/8" PC 12513091 12513092

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
