.png)
Luxury chrome bronze base and drum.
Heavy duty rated IP44 electric motor.
Anodised marine aluminium gearbox.

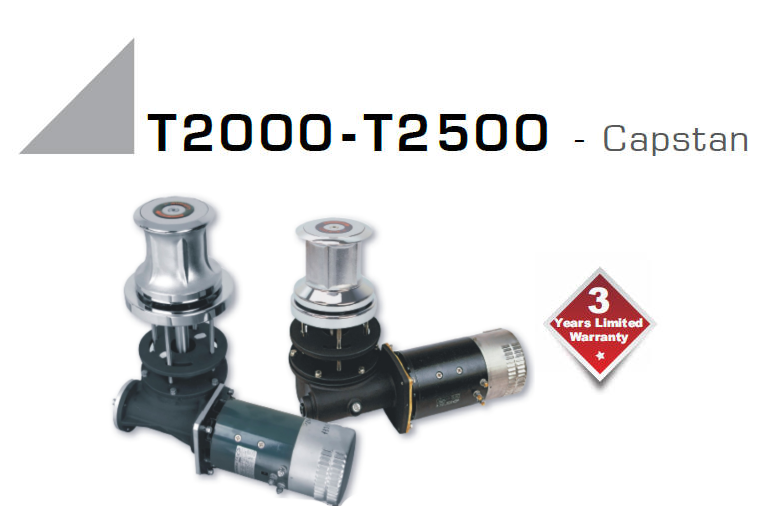

Complete Capstan.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
| Motor Size | 2200W | 2300W | 2300W | Hydraulic 9cc |
| Type | CW | CW | CCW | CW |
| Volts | 230/400 | 24 | 24 | |
| Max instant lift (kg) | 2200 | 2000 | 2000 | 2500 |
| Working load (kg) | 595 | 545 | 545 | 680 |
| Line speed (m/min) | 15 | 15 | 15 | 15 |
| Max line speed (m/min) | 15 | 31 | 31 | 15 |
| Amps work load (Media) | 180 | 180 | ||
| Hydraulic Pressure (bar) | 200 | |||
| Hydraulic Flow (lt/min) | 32 | |||
| Weight (kg) | 52 | 52 | 52 | 40 |
| Prices |
4,262.45 €
Sale Price 3,836.21 € |
3,996.15 €
Sale Price 3,596.54 € |
3,996.15 €
Sale Price 3,596.54 € |
3,596.47 €
Sale Price 3,236.82 € |
| T2000 | 600071 CW  |
404967 CW |
600729 CCW |
602140 CW |
| Motor Size | 2200W | 2700W | Hydraulic 9cc |
| Type | CW | CW | CW |
| Volts | 230/400 | 24 | |
| Max instant lift (kg) | 2200 | 2400 | 2500 |
| Working load (kg) | 595 | 650 | 680 |
| Line speed (m/min) | 15 | 15 | 15 |
| Max line speed (m/min) | 15 | 31 | 15 |
| Amps work load (Media) |
210 | ||
| Hydraulic Pressure (bar) | 200 | ||
| Hydraulic Flow (lt/min) | 32 | ||
| Weight (kg) | 52 | 53 | 40 |
| Prices |
4,262.45 €
Sale Price 3,836.21 € |
5,194.76 €
Sale Price 4,675.28 € |
4,662.17 €
Sale Price 4,195.95 € |
| T2500 | 600070 CW |
476239 CW |
602168 CW |
