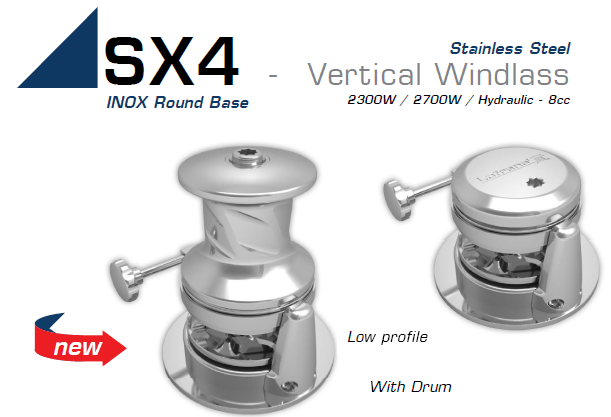

Lofrans SX4 Vertical Windlass

Main Features

Main features

Compact round base design

Marine AISI 316L Stainless Steel construction

With drum or Low profile

Indepent Gypsy and drum operation

Manual chain release

Chain counter magnet pre-installed as standard

IP67 rated heavy duty electric motor

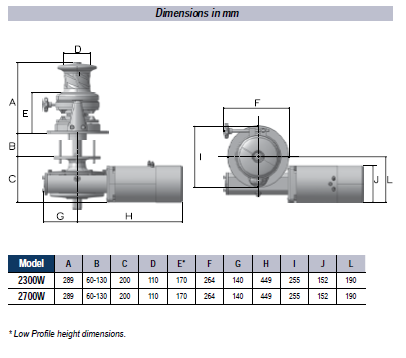

Hydraulic dimensions

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	Stainless Steel
Motor Size	2300W	2700W	Hydraulic - 8cc
Volts	24	24
Maximum Instant Lift (kg)	2100	2500	2500
Lifiting Working Load (kg)	500	530	650
Amps under load (A)	160	170
Line speed (m/min)	13	13	16
Max line speed (m/min)	25	28	16
Hydraulic Pressure (bar)			200
Hydraulic Volume (lt/min)			32
Net Weight Low Profile (kg)	72	75	55
NetWeight With Drum (kg)	82	85	60
Relay box	yes	yes

With Drum

CW: the windlass pulls clockwise.

Motor	24v 2300w	24v 2700W	Hydraulic - 8cc
Chain Size	5,873.11 € Sale Price 5,285.80 €	6,394.09 € Sale Price 5,754.68 €	5,091.59 € Sale Price 4,582.43 €
12mm ISO/ 13mm DIN	636290	636291	636295
14mm		636655

Low Profile

CCW: the windlass pulls counter clockwise.

Motor	24v 2300w	24v 2700W	Hydraulic - 8cc
Chain Size	5,920.47 € Sale Price 5,328.42 €	6,394.20 € Sale Price 5,754.78 €	5,683.70 € Sale Price 5,115.33 €
12mm ISO/ 13mm DIN	636292	636293	636294

*Other options available: 8mmISO - 10mmDIN - 3/8"HT-BBB - 1/2"G40-BBB
