Marine aluminium anodised body.
Rope chain management by the spring load arm.
Manual override.
Manual chain release.
Heavy duty rated IP66 electric.

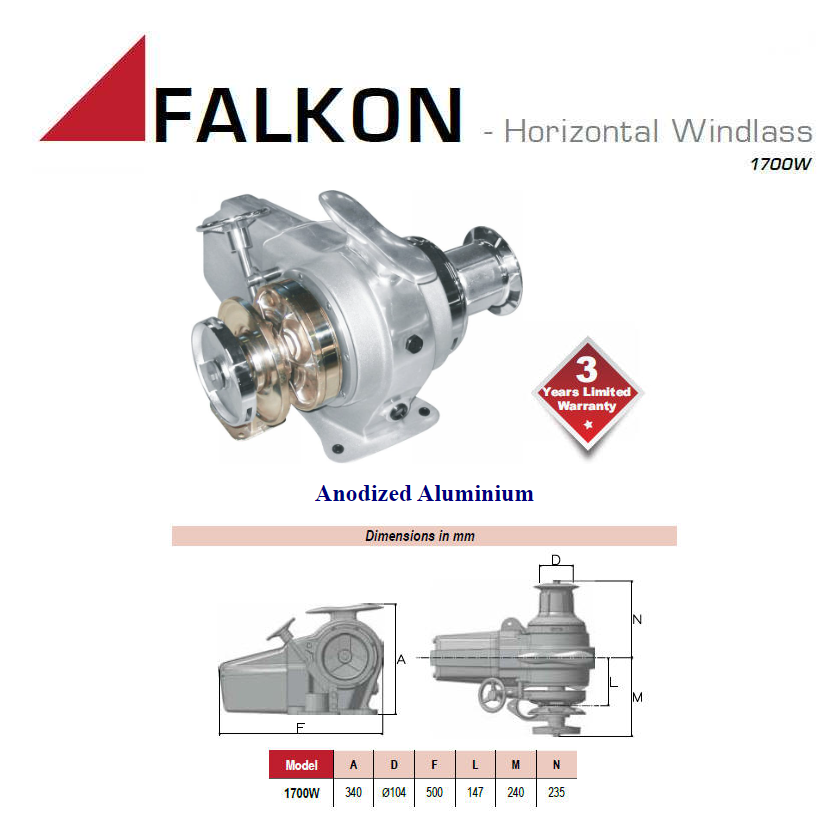

Complete Windlass.
Chain gypsy.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
| Construction | Aluminium | Aluminium |
| Motor Size | 1700W | 1700W |
| Volts | 12 | 24 |
| Amps work load | 210 | 100 |
| Max instant lift (kg) | 1700 | 1800 |
| Working load (kg) | 290 | 290 |
| Line speed (m/min) | 33 | 3 |
| Max line speed (m/min) | 33 | 3 |
| Weight (kg) | 55 | 55 |
| Construction | Aluminium | Aluminium |
|---|---|---|
| Volts | 12v | 24v |
| Price Chain and Rope Size |
4,007.30 €
Sale Price 3,606.57 € |
4,007.30 €
Sale Price 3,606.57 € |
| 10mm ISO 4565 | 13613221 |
13613222 |
| 10mm DIN 766 | 13613231 |
13613232 |
| 12mm ISO | 13613241 |
13613242 |
| 14mm | 13613251 |
13613251 |
| 3/8" DIN | 13613031 |
13613032 |
| 3/8" HT | 13613041 |
13613042 |
| 3/8" G40 | 13613101 |
13613102 |
| 7/16" HT | 13613111 |
13613112 |
| 1/2" HT | 13613071 |
13613072 |
| 1/2" BBB | 13613061 |
13613062 |
| 1/2" G40 | 13613121 |
13613122 |
*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
