White polyester coating
Manual override.
Manual chain release.
Independent Gypsy and drum operation.
Heavy duty rated IP66 electric.

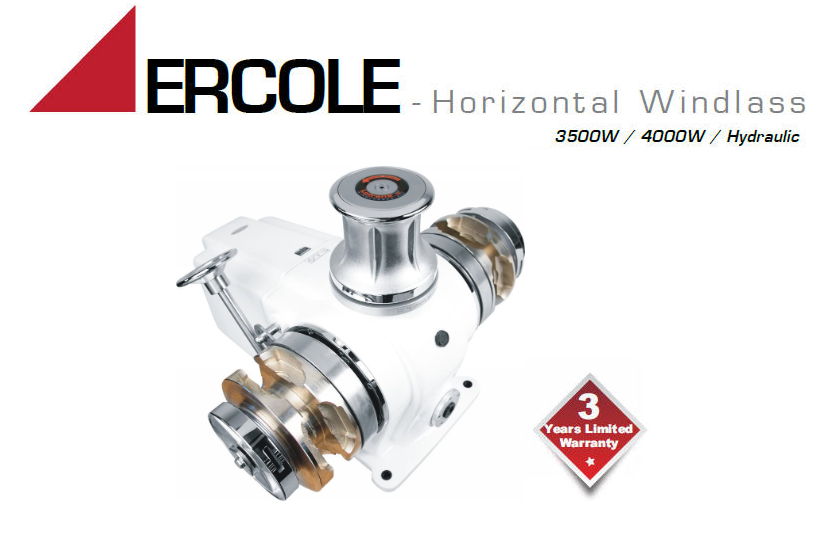

Complete Windlass.
Chain gypsy.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
| Construction | White Anodised Aluminium | |||
| Motor Size | 3500W | 5500w | Hydraulic | |
| Volts | 24 | 230(1ph) | 400(3ph) | |
| Amps work load | 120 | 17-23 | 9-14 | |
| Max instant lift (kg) | 4500 | 6500 | 6500 | 6500 |
| Working load (kg) | 810 | 1550 | 1550 | 1550 |
| Line speed (m/min) | 12 | 12 | 12 | 12 |
| Max line speed (m/min) | 15 | 12 | 12 | 12 |
| Weight (kg) | 200 | 230 | 230 | 180 |
| Hydraulic Pressure (bar) | 200 | |||
| Hydraulic Flow (lt/min) | 40 | |||
| Construction | White Aluminium |
White Aluminium |
|---|---|---|
| Motor | 24v 3500W | Hydraulic |
| Type A price |
19,979.76 €
Sale Price 17,981.78 € |
17,848.69 €
Sale Price 16,063.82 € |
| Type A 14mm | 403615 |
602509 |
| Type B price |
22,643.68 €
Sale Price 20,379.31 € |
20,246.06 €
Sale Price 18,221.45 € |
| Type B 14mm | 220317 |
602512 |
| Type C price |
21,311.74 €
Sale Price 19,180.57 € |
19,180.65 €
Sale Price 17,262.59 € |
| Type C 14mm | 403614 |
602515 |

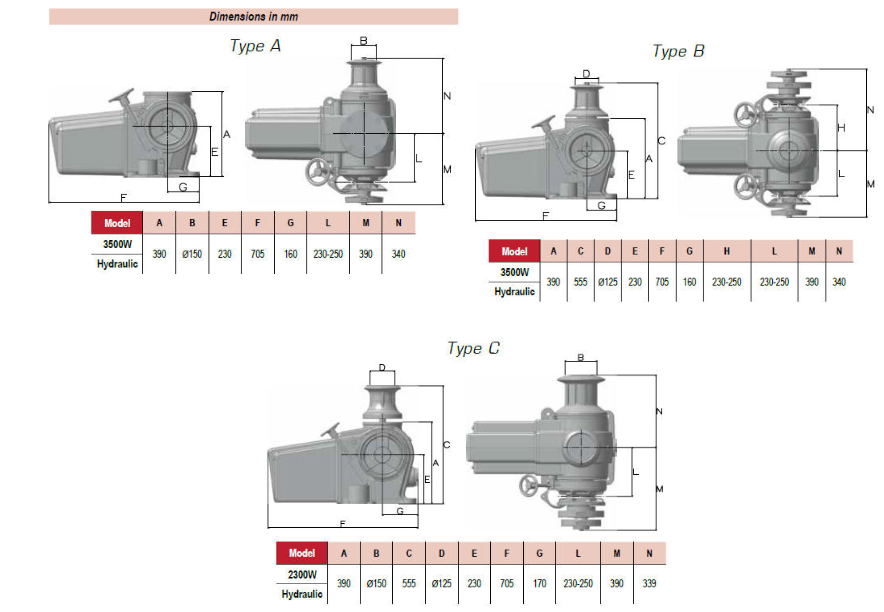

| Type A | Gypsy Stb - Drum Port |
| Type B | Gypsy Stb - Gypsy Port - Drum Top |
| Type C | Gypsy Stb - Drum Port - Drum Top |
| Type D | Gypsy Stb - Drum Top |
| Type E | Gypsy Port - Drum Top |
| Type F | Drum Stb - Gypsy Port |
10mm 12mm 14mm 13mm 16mm 18mm 20mm
3/8 DIN, 3/8 HT, 1/2 HT
1/2" 9/16" 5/8" 11/16" 3/4" Stud Link
14, 16, 17.5, 19, 20 Stud link
13 ITALMET
