Lofrans Drum Multi Functional Winch

Drum top
Lofrans drumLofrans 3 year

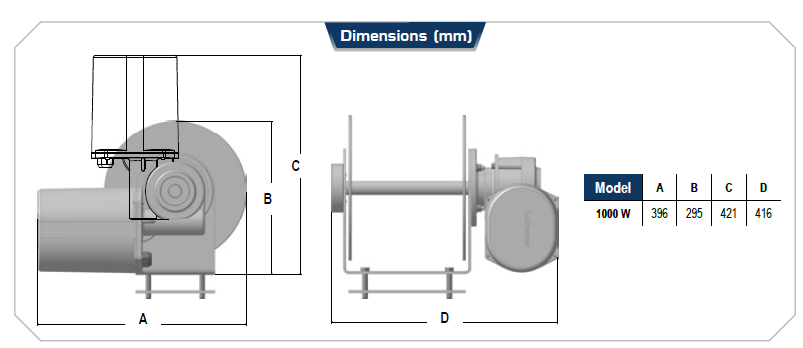

Lofrans drum Dimensions

Main Features

Fast and easy rope and chain anchoring for boats up to 40 feet / 12 metres

Marine AISI 316 Stainless Steel drum, base and backing plate

Anodised aluminium gear case

Heavy-duty electric motor and gearbox

IP67 motor cover

Gearbox with 8 adjustable positions

Standard Equipment

Drum winch assembly

Reversing solenoid

Rocker switch

Circuit breaker

Backing plate

Fixing hardware

70 metres of rope (Ø12mm 3-strand)

8 metres of chain (Ø6mm)

Construction 316 Stainless Steel
Motor Size 1000W
Volts 12v
Amps Work Load 135
Max Lift Load empty(kg) 900
Max lift full (kg) 220
Max retrieval speed (m/min) 45
Max fall speed (m/min) 50
Rope chain capacity(m)
12mm 3 strand rope 6mm chain
Weight (kg) 19
1,324.58 €
Sale Price
1,192.13 €
