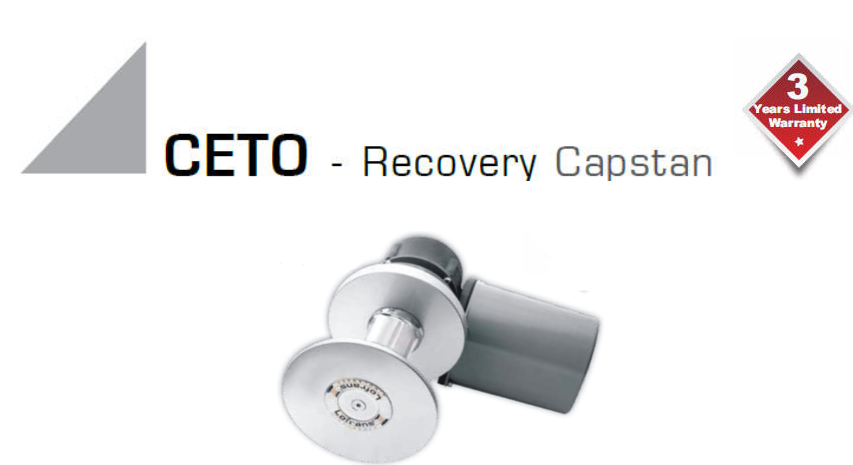

Lofrans Ceto Recovery Capstan

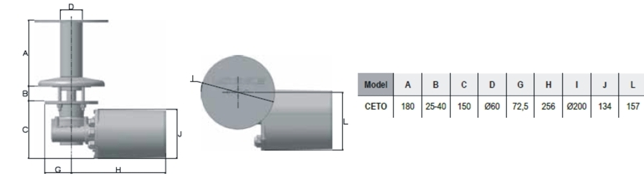

Lofrans Ceto Lofrans Ceto Dimensions

Main features

The new CETO model is a unit built for the professional fishermen used for retrieving clam fishing baskets.


They are assembled using a heavy duty electric motor and gearbox, with the motor contained in an IP67 rated cover to be protected from humidity and sea water, and by a strong aluminum drum able to contain approximately 20 meters of fine rope.


The drum is driven by use of a high torque worm gear box with the gear case made in black anodized marine aluminium.


The gears are made of special bronze and steel in order to withstand the high stress during the intensive use of such an operation.


The top part is made by a simple construction of a anodized marine aluminium for the base and drum, and a stainless steel AISI 431 shaft.


They are available at a power rating of 1000W at 12V or 24V.


Construction Aluminium
Motor Size 1000W
Volts 12v
Amps Work Load 165
Max Lift Load (kg) 850
Working Load (kg) 175
Line speed (m/min) 15
Weight (kg) 16
1,220.28 €
Sale Price
1,098.25 €
